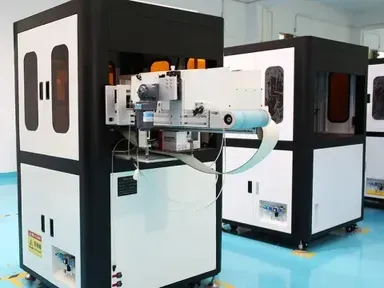

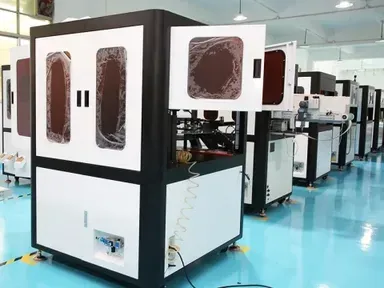

Magnetic Material Vision Inspection Machine

Optical sorting machine with 4 CCD cameras for the dimensional measurement of magnetic materials

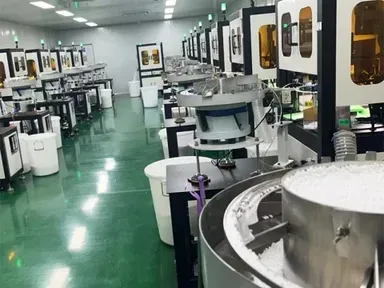

The magnetic material vision inspection machine is designed for precise, high-speed quality control of magnetic alloy components, such as hexahedral zinc alloy parts. It features vibration bowl feeding for smooth and consistent part handling, and integrates an AI-powered visual inspection system with 4 industrial CCD cameras.

Based on your custom inspection criteria, the system checks critical dimensions like outer diameter and height, verifying whether each part meets its technical drawing specifications. This vision inspection machine operates at a detection speed of 600 pcs/min with a measurement precision of ±0.01 mm, ensuring reliable dimensional accuracy in every batch.

We’re here to help you find the right solution for fast and accurate magnetic component production.

Specifications

General	Power		1.8 kW
	Air pressure		0.4-0.6Mpa,air inlet pipe Ø16mm
	Machine dimensions		1100(L)×1700(W)×1800(H)mm
	Machine weight		350kg
	Working conditions		Less than 90% RH
Visual inspection	Inspection speed		Design speed:80-3000 pcs/min
	CDD Camera	Image sensor	Basler (German)
		Resolution	2560×1920,1280×1024
		Inspection accuracy	±0.01mm
	Lens	Optical lens	Custom lens
		Depth of field (DoF)	0.2-3mm
	Light source		AOI light source
Feeding	Precision belt feed system		Precision belt is made from special conductive material through integrated forming process,ensuring high accuracy (customized)
