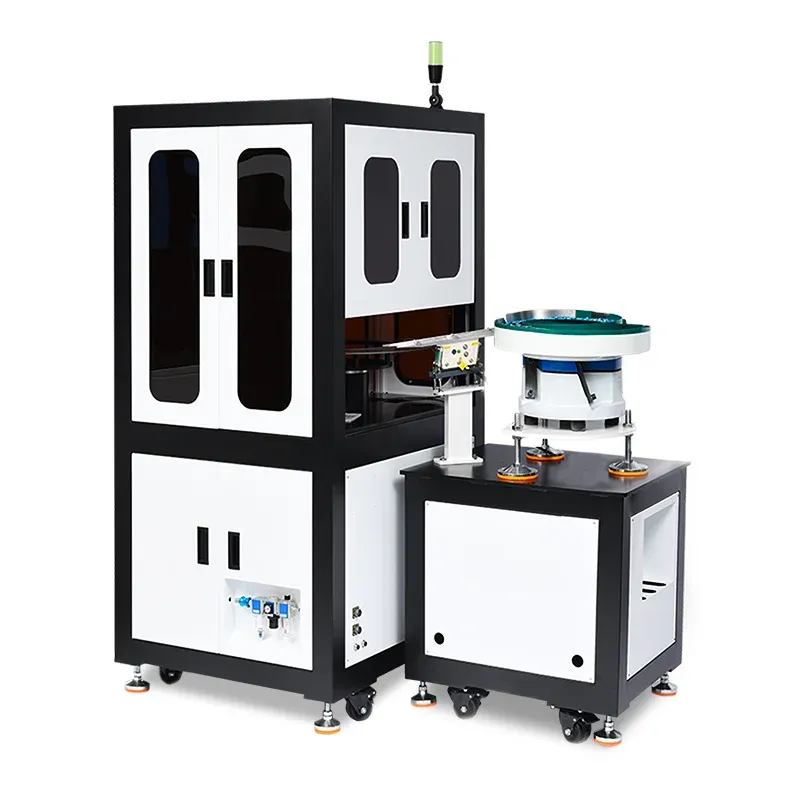

Screw AOI Vision Inspection Machine

AI visual inspection system for measuring dimensions of products, components and parts

  • Advanced AI algorithm for high-precision measurement
  • Trusted by over 12,000 customers across industries
  • Certified national-level high-tech enterprise
  • Integrated with German Basler cameras and U.S. fiber optics
  • Over 10 years of manufacturing expertise
  • Equipped with gemstone-grade lenses for ultra-clear detection

Working Principle

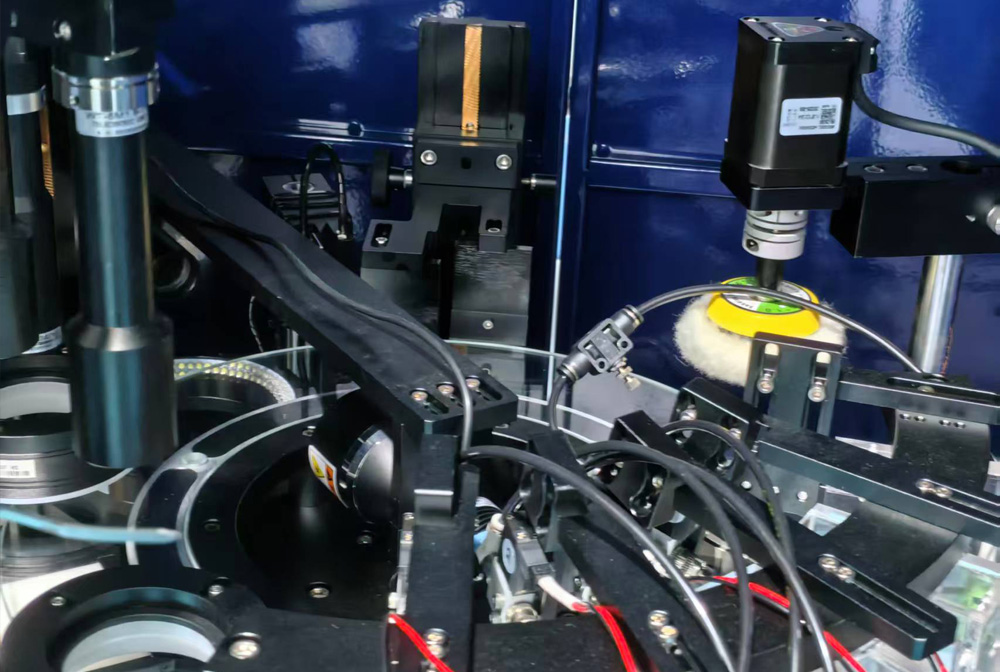

The dimensional inspection machine uses high-definition industrial CCD cameras combined with AI-driven visual inspection software to precisely detect product dimensions and surface defects based on your specific quality requirements.
Qualified (OK) and unqualified (NG) parts are automatically sorted through separate discharge outlets to ensure reliable, hands-free inspection.

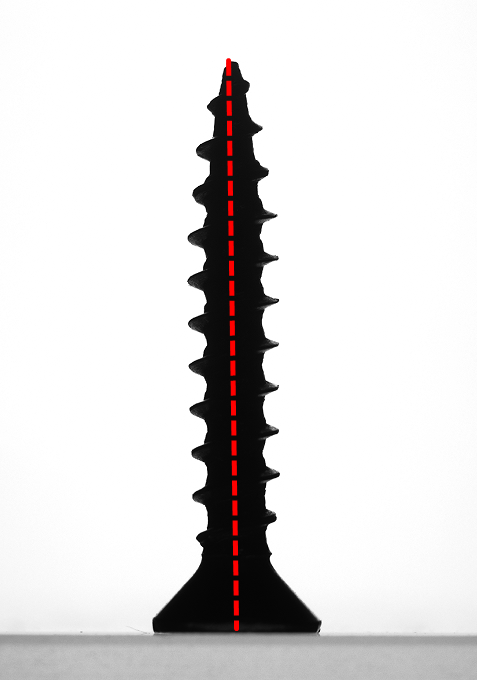

For Screw Head Crossing/ OD, Thread Distance/Sharpness /Length and so on

Categories: ,
Description

Application

Ideal for precise dimensional inspection of:

  • imgi_1_icon1_50 Plastic components
  • imgi_1_icon1_50 Metal parts and hardware
  • imgi_1_icon1_50 Ceramic elements
  • imgi_1_icon1_50 Automotive accessories
  • imgi_1_icon1_50 Gemstones and fine jewelry parts
  • imgi_1_icon1_50 Various small industrial components
imgi_12_products_01__119
imgi_13_products_02__119
imgi_14_products_03__119
imgi_15_products_04__119
imgi_16_products_05__119
imgi_17_products_06__119
imgi_18_products_07__119
imgi_19_products_08__119
imgi_20_products_09__119
imgi_21_products_10__119
imgi_22_products_11__119
imgi_23_products_12__119
imgi_24_products_13__119
imgi_25_products_14__119
imgi_26_products_15__119
imgi_27_products_16__119
imgi_28_products_17__119
imgi_29_products_18__119
imgi_30_products_19__119
imgi_31_products_20__119
imgi_32_products_21__119
imgi_33_products_22__119
imgi_34_products_23__119
imgi_35_products_24__119

Specifications

GeneralPower1.8 kW
Air pressure0.4-0.6Mpa,air inlet pipe Ø16mm
Machine dimensions1100(L)×1700(W)×1800(H)mm
Machine weight350kg
Working conditionsLess than 90% RH
Visual inspectionInspection speedDesign speed:80-3000 pcs/min
CDD CameraImage sensorBasler (German)
Resolution2560×1920,1280×1024
Inspection accuracy±0.01mm
LensOptical lensCustom lens
Depth of field (DoF)0.2-3mm
Light sourceAOI light source
FeedingPrecision belt feed systemPrecision belt is made from special conductive material through integrated forming process,ensuring high accuracy (customized)
imgi_36_2-1-ceramic-vision-inspection-machine_06__278
imgi_37_2-1-ceramic-vision-inspection-machine_07__278
